Hardware Specifications
|
|
Copper Ports
|
1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
|
|
SFP Fiber Ports
|
1 100/1000/2500BASE-X SFP interface (Port-2)
|
|
RAM
|
128MBytes
|
|
Flash Memory
|
64MBytes
|
|
Reset Button
|
< 5 sec: System reboot
|
|
> 5 sec: Factory default
|
|
ESD Protection
|
6KV DC
|
|

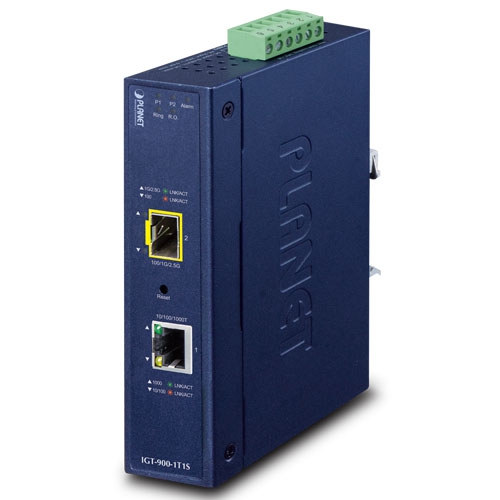

Enclosure
|
IP30 aluminum case
|
|
Installation
|
DIN-rail kit and wall-mount kit
|
|

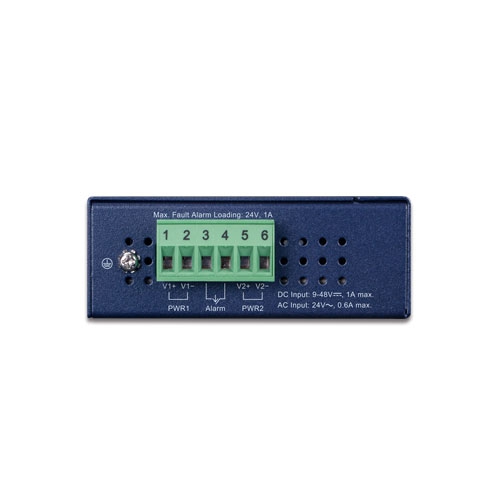

Connector
|
Removable 6-pin terminal block for power input
|
|
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
|
|
Alarm
|
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
|
|
Dimensions (W x D x H)
|
32 x 87 x 135 mm (W x D x H)
|
|
Weight
|
273g
|
|
Power Requirements
|
Dual 9~48V DC, 24V AC
|
|
Power Consumption
|
AC Input
|
|
Max. 8 watts/24BTU (Ethernet Full Loading)
|
|
DC Input
|
|
Max. 4.6 watts/24BTU (Ethernet Full Loading)
|
|

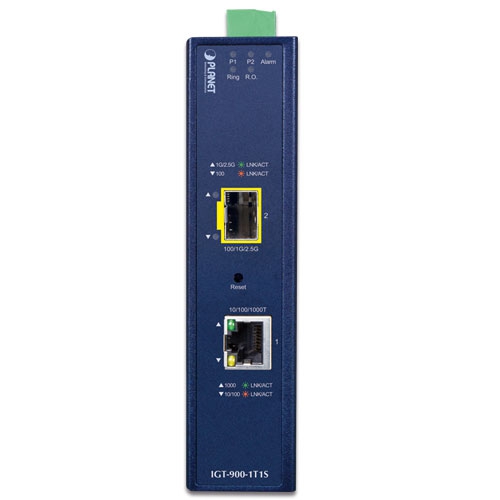

LED Indicator
|
System:
|
|
Power 1 (Green)
|
|
Power 2 (Green)
|
|
Fault Alarm (Red)
|
|
Ring (Green)
|
|
Ring Owner (Green)
|
|
Per 10/100/1000T RJ45Ports:
|
|
1000 LNK/ACT (Green)
|
|
10/100 LNK/ACT (Amber)
|
|
Per SFP Interface:
|
|
10/100 LNK/ACT (Amber)
|
|
1G/2.5G LNK/ACT (Green)
|
|
Switching
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
7Gbps/non-blocking
|
|
Throughput (packet per second)
|
5.21Mpps@ 64 bytes packet
|
|
Address Table
|
4K entries, automatic source address learning and aging
|
|
Shared Data Buffer
|
4Mbits
|
|
Flow Control
|
IEEE 802.3x pause frame for full duplex
|
|
Back pressure for half duplex
|
|
Jumbo Frame
|
9K bytes
|
|
Layer 3 Functions
|
|
IP Interfaces
|
Max. 8 VLAN interfaces
|
|
Routing Table
|
Max. 32 routing entries
|
|
Routing Protocols
|
IPv4 software static routing
|
|
IPv6 software static routing
|
|
Layer 2 Function
|
|
Port Configuration
|
Port disable/enable
|
|
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
|
|
Flow control disable/enable
|
|
Power saving mode control
|
|
Port Status
|
Display each port’s speed duplex mode, link status, flow control status,
|
|
auto negotiation status, trunk status
|
|
Port Mirroring
|
TX / RX / Both
|
|
Many-to-1 monitor
|
|
VLAN
|
IEEE 802.1Q tag-based VLAN
|
|
IEEE 802.1ad Q-in-Q tunneling
|
|
Private VLAN Edge (PVE)
|
|
MAC-based VLAN
|
|
Protocol-based VLAN
|
|
VLAN Translation
|
|
Voice VLAN
|
|
MVR (Multicast VLAN Registration)
|
|
GVRP
|
|
Up to 4K VLAN groups, out of 4094 VLAN IDs
|
|
Spanning Tree Protocol
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IGMP Snooping
|
IPv4 IGMP (v1/v2/v3) snooping
|
|
IPv4 IGMP querier mode support
|
|
Up to 255 multicast groups
|
|
IGMP Snooping
|
IPv4 IGMP (v1/v2/v3) snooping
|
|
IPv4 IGMP querier mode support
|
|
Up to 255 multicast groups
|
|
MLD Snooping
|
IPv6 MLD (v1/v2) snooping
|
|
IPv6 MLD querier mode support
|
|
Up to 255 multicast groups
|
|
Bandwidth Control
|
Per port bandwidth control
|
|
Ingress: 500Kb~1000Mbps
|
|
Egress: 500Kb~1000Mbps
|
|
RING
|
Supports ERPS, and complies with ITU-T G.8032
|
|
Recovery time < 10ms
|
|
Synchronization
|
IEEE 1588v2 PTP(Precision Time Protocol)
|
|
Peer-to-peer transparent clock
|
|
End-to-end transparent clock
|
|
QoS
|
Traffic classification based, strict priority and WRR
|
|
8-level priority for switching
|
|
Port number
|
|
802.1p priority
|
|
802.1Q VLAN tag
|
|
DSCP/TOS field in IP packet
|
|
Security Functions
|
|
Access Control List
|
IP-based ACL/MAC-based ACL
|
|
ACL based on:
|
|
MAC Address
|
|
IP Address
|
|
Ethertype
|
|
Protocol Type
|
|
VLAN ID
|
|
DSCP
|
|
802.1p Priority
|
|
Up to 256 entries
|
|
Security
|
Port Security
|
|
IP source guard
|
|
Dynamic ARP inspection
|
|
Command line authority control based on user level
|
|
AAA
|
RADIUS client
|
|
TACACS+ client
|
|
Network Access Control
|
IEEE 802.1x port-based network access control
|
|
MAC-based authentication
|
|
Local/RADIUS authentication
|
|
Switch Management
|
|
Basic Management Interfaces
|
Telnet; Web browser; SNMP v1, v2c
|
|
Secure Management Interfaces
|
SSHv2, TLS v1.2, SNMP v3
|
|
System Management
|
Firmware upgrade by HTTP protocol through Ethernet network
|
|
Configuration upload/download through HTTP
|
|
Remote syslog
|
|
System log
|
|
LLDP protocol
|
|
NTP
|
|
PLANET Smart Discovery Utility
|
|
PLANET CloudViewer app
|
|
Event Management
|
Remote syslog
|
|
Local system log
|
|
SMTP
|
|
SNMP MIBs
|
RFC 1213 MIB-II
|
|
RFC 2863 IF-MIB
|
|
RFC 1493 Bridge MIB
|
|
RFC 1643 Ethernet MIB
|
|
RFC 2863 Interface MIB
|
|
RFC 2665 Ether-Like MIB
|
|
RFC 2737 Entity MIB
|
|
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
|
|
RFC 2618 RADIUS Client MIB
|
|
RFC 3411 SNMP-Frameworks-MIB
|
|
IEEE 802.1X PAE
|
|
LLDP
|
|
MAU-MIB
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Stability Testing
|
IEC60068-2-32 (free fall)
|
|
IEC60068-2-27 (shock)
|
|
IEC60068-2-6 (vibration)
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
|
|
IEEE 802.3u 100BASE-TX/100BASE-FX
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3ab Gigabit 1000T
|
|
IEEE 802.3x flow control and back pressure
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.1Q VLAN tagging
|
|
IEEE 802.1ad Q-in-Q VLAN stacking
|
|
IEEE 802.1X Port Authentication Network Control
|
|
IEEE 802.1ab LLDP
|
|
IEEE 802.3ah OAM
|
|
IEEE 1588 PTPv2
|
|
RFC 768 UDP
|
|
RFC 793 TFTP
|
|
RFC 791 IP
|
|
RFC 792 ICMP
|
|
RFC 2068 HTTP
|
|
RFC 1112 IGMP v1
|
|
RFC 2236 IGMP v2
|
|
RFC 3376 IGMP version 3
|
|
RFC 2710 MLD version 1
|
|
RFC 3810 MLD version 2
|
|
ITU-T G.8032 ERPS Ring
|
|
Environment
|
|
Operating Temperature
|
-40 ~ 75 degrees C
|
|
Storage Temperature
|
-40 ~ 85 degrees C
|
|
Humidity
|
5 ~ 95% (non-condensing)
|
